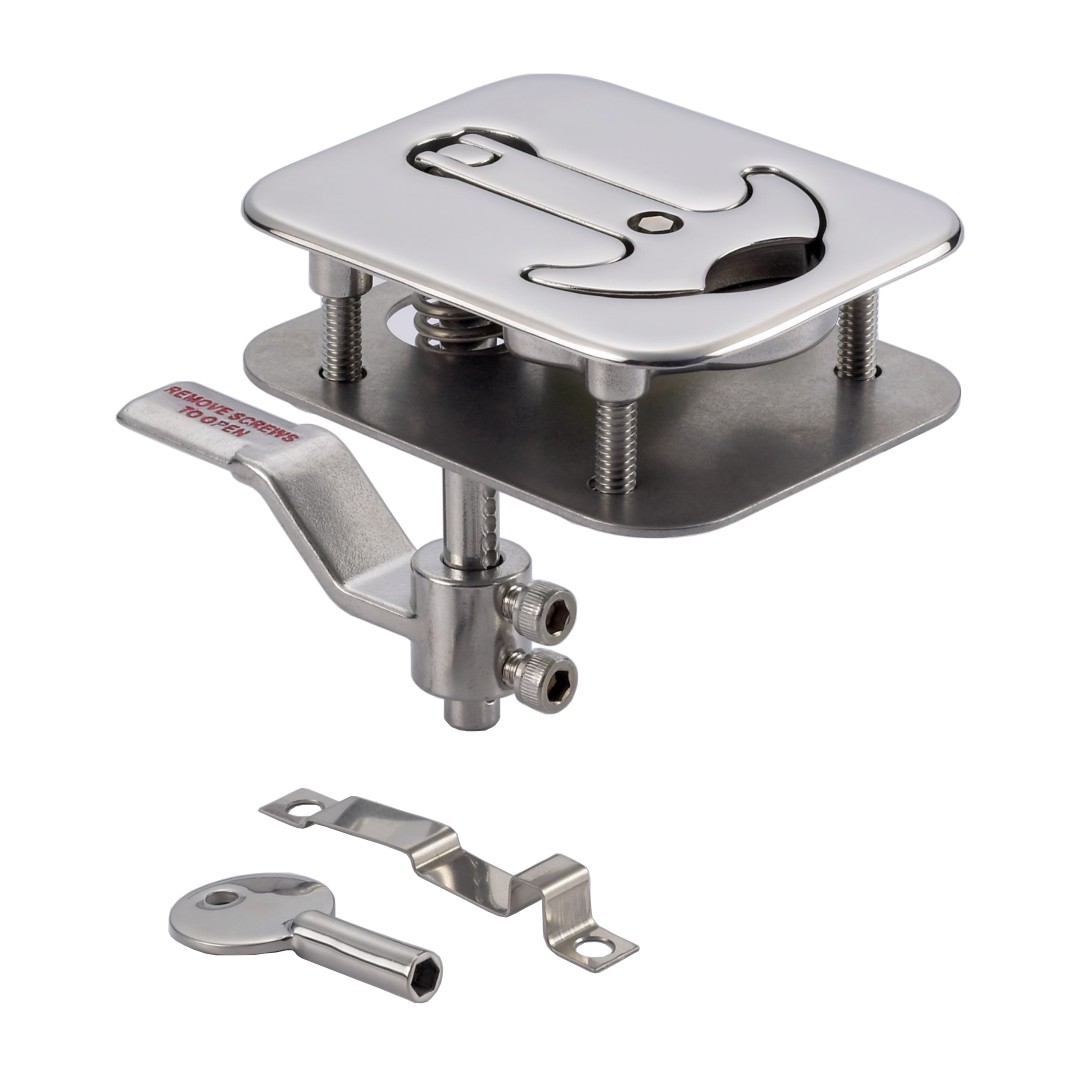

Aqualine Heavy Duty Compression Hatch Latch
Aqualine' Cast 316 Stainless Steel Latches. Can be opened from the inside as a safety measure. Available with or without a lock.
Description
10A-86801 - Small Compression Latch – No Lock
10A-86801K - Small Compression Latch – Locking
Overall dim. 86 x 68mm – Cut out dim. 60 x 48mm - Hatch Depth 4-32mm
10A-86802 - Large Compression Latch – No Lock
10A-86802K – Large Compression Latch – Locking
Overall dim. 96 x 80mm – Cut out dim. 76 x 63mm - Hatch depth 8-36mm
Additional
| Options | 86 x 68mm, 86 x 68mm with Lock, 96 x 80mm, 96 x 80mm with Lock |
|---|---|
| Brand | C-Quip |
