Do It Yourself Teak Grating

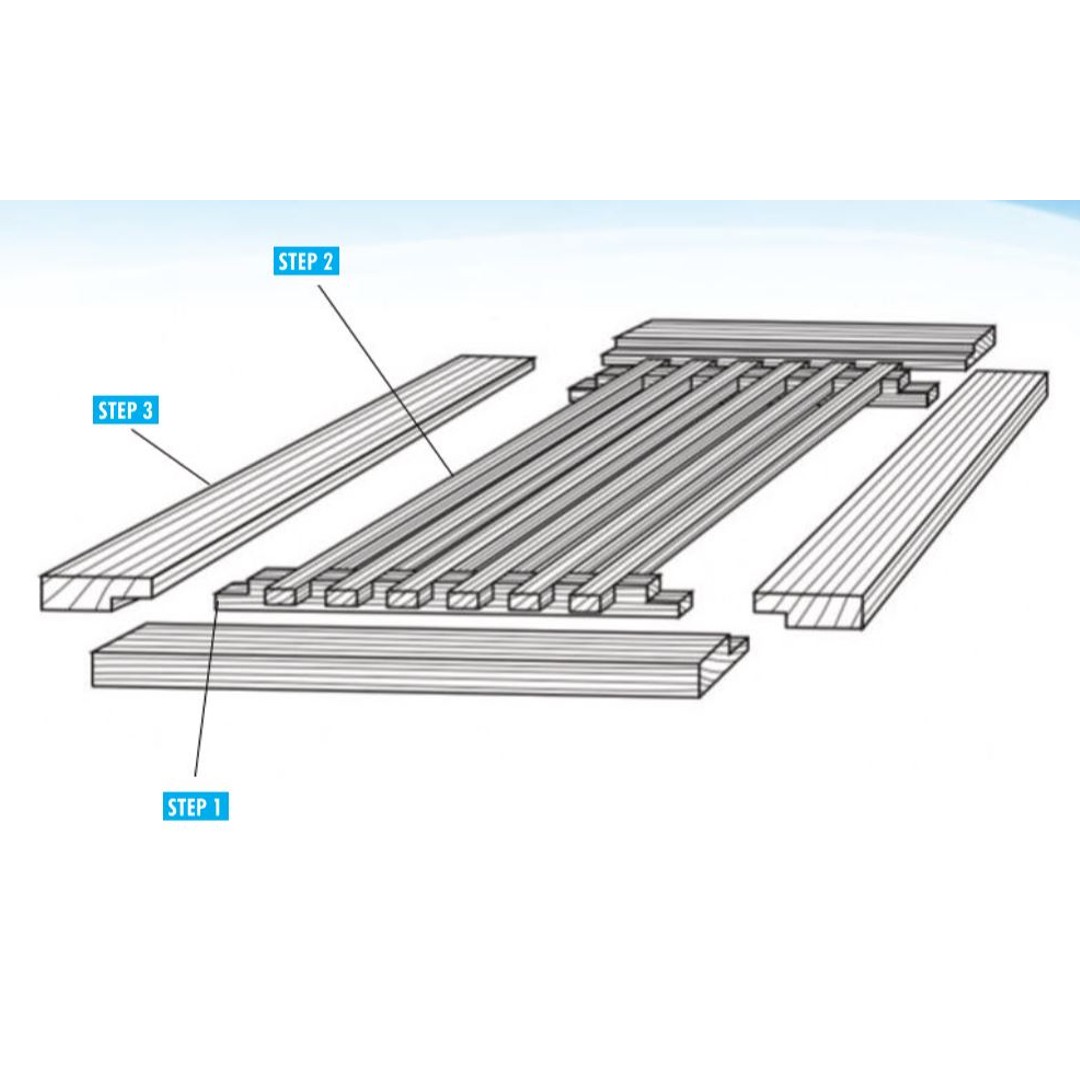

Do It Yourself Grating. Build your own teak grating in 3 easy steps.
Description

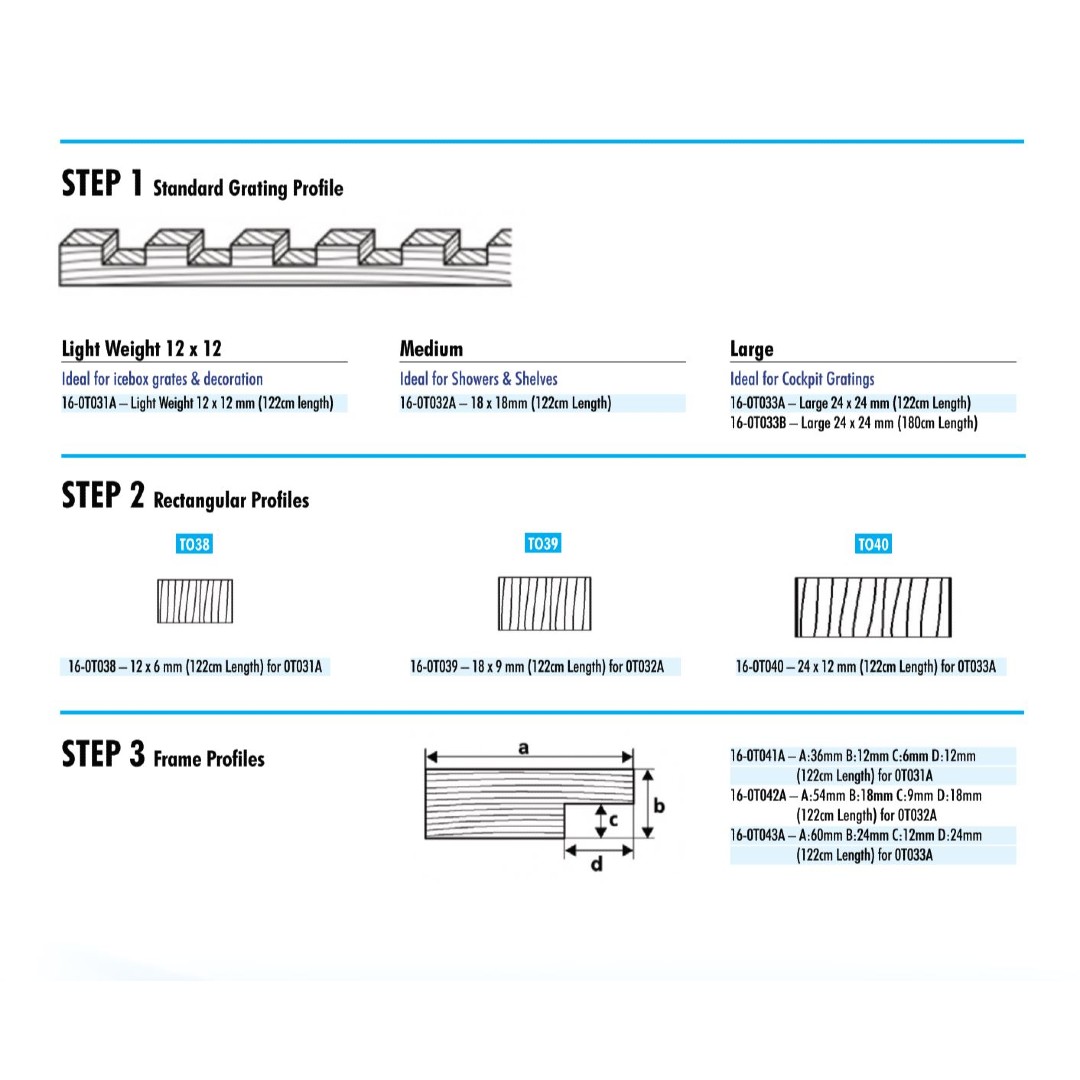

Step 1 - Choose your standard grating profile:
16-0T031A (Light Weight) Ideal for icebox grates & decoration - Dimensions - 12 x 12mm (122cm Length)
16-0T032A (Medium) Idea for showers & shelves - Dimensions - 18 x 18mm (122cm Length)
16-0T033A (Large) Ideal for cockpit gratings - Dimensions - 24 x 24mm (122cm Length)
16-0T033B (Large) - Dimensions - 24 x 24mm (180cm Length)
Step 2 - Choose your rectangular profile:
16-0T038 - 12 x 6mm (122cm Length) Use for 16-0T031A
16-0T039 - 18 x 9mm (122cm Length) Use for 16-0T032A
16-0T040 - 24 x 12mm (122cm Length) Use for 16-0T033A
Step 3 - Choose your frame profile:
16-0T041A - Frame profile for 16-0T031A - Dimensions - A:36mm B:12mm C:6mm D:12mm (122cm Length)
16-0T042A - Frame profile for 16-0T032A - Dimensions - A:54mm B:18mm C:9mm D:18mm (122cm Length)
16-0T043A - Frame profile for 16-0T033A - Dimensions - A:60mm B:24mm C:12mm D:24mm (122cm Length)
Oversized product shipping surcharge will be applied.
Additional
| Options | Frame profile for 16-0T031A, Frame profile for 16-0T032A, Frame profile for 16-0T033A, Grate Profile - Large - 24x24mm (122cm Length), Grate Profile - Large - 24x24mm (180cm Length), Grate Profile - Light Weight - 12x12mm (122cm Length), Grate Profile - Medium - 18x18mm (122cm Length), Rectangular Profile - 12 x 6mm (122cm Length) for 16-0T031A, Rectangular Profile - 18 x 9mm (122cm Length) for 16-0T032A, Rectangular Profile - 24 x 12mm (122cm Length) for 16-0T033A |
|---|---|
| Brand | C Quip |
