Index Marine Cable Glands
This range are all rated as IP68, ensuring the level of cable protection is incredibly resilient to the outdoors and other harsh environments
Description
Index Marine has a range of metric threaded cable glands offering excellent strain relief and cable protection. Cable glands allow you to mount a cable into a pre-drilled hole ensuring a tight seal.

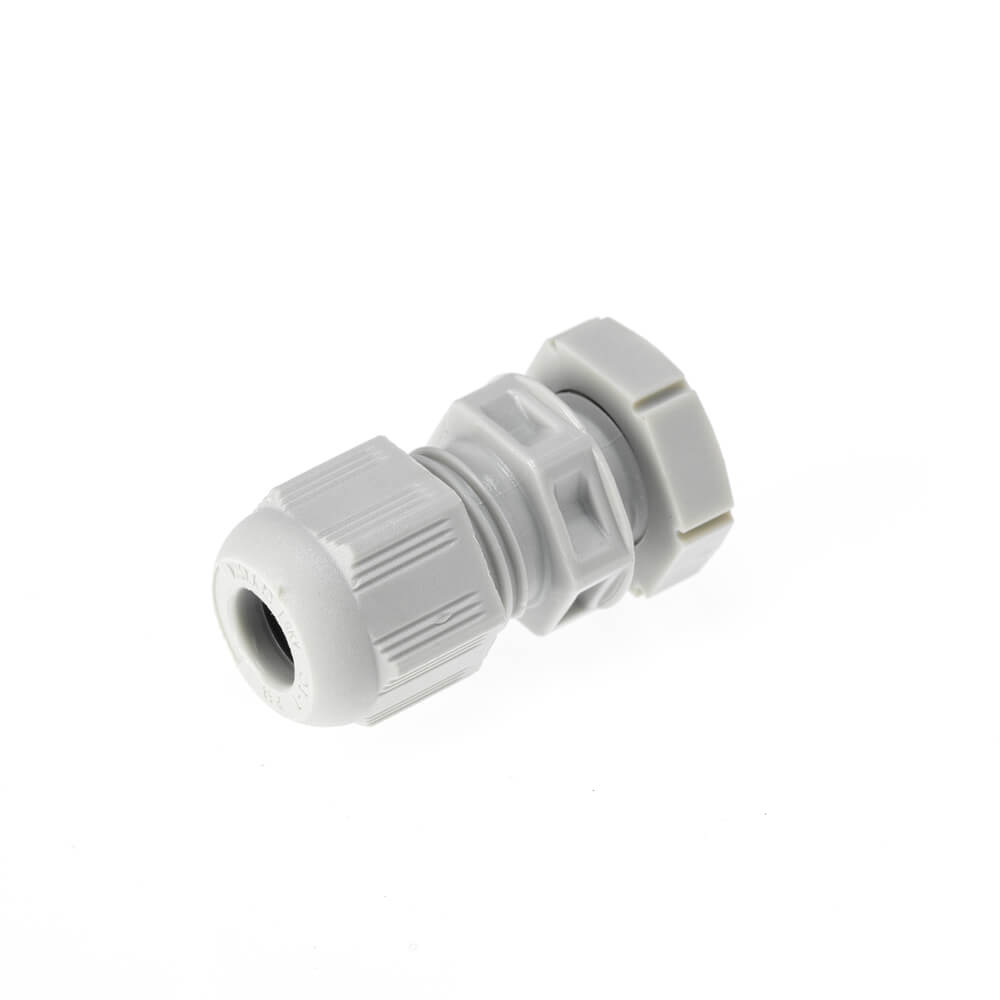

07-A6-312 - CG1 M12 Cable Gland:
Max Cable Size - 7mm
Min Cable Size - 3mm

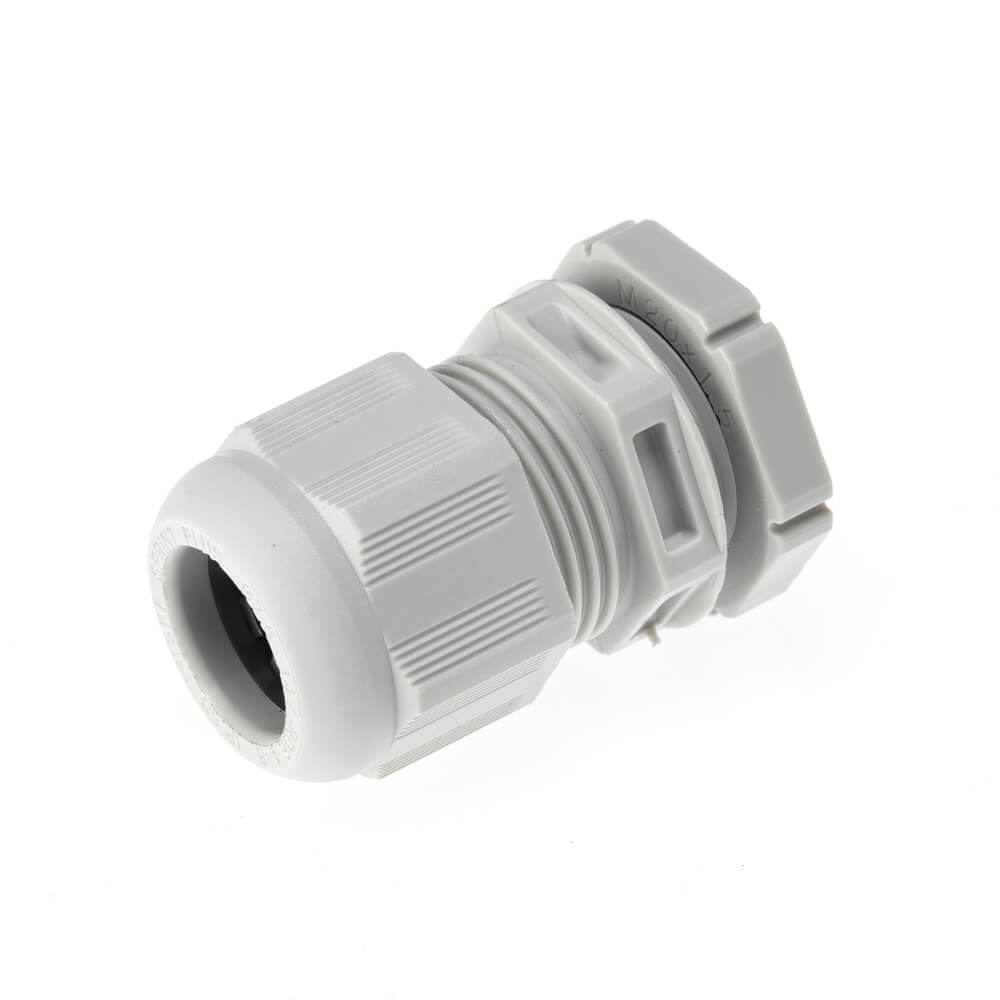

07-A6-320 - CG2 M20 Cable Gland:
Max Cable Size - 13mm
Min Cable Size - 6mm

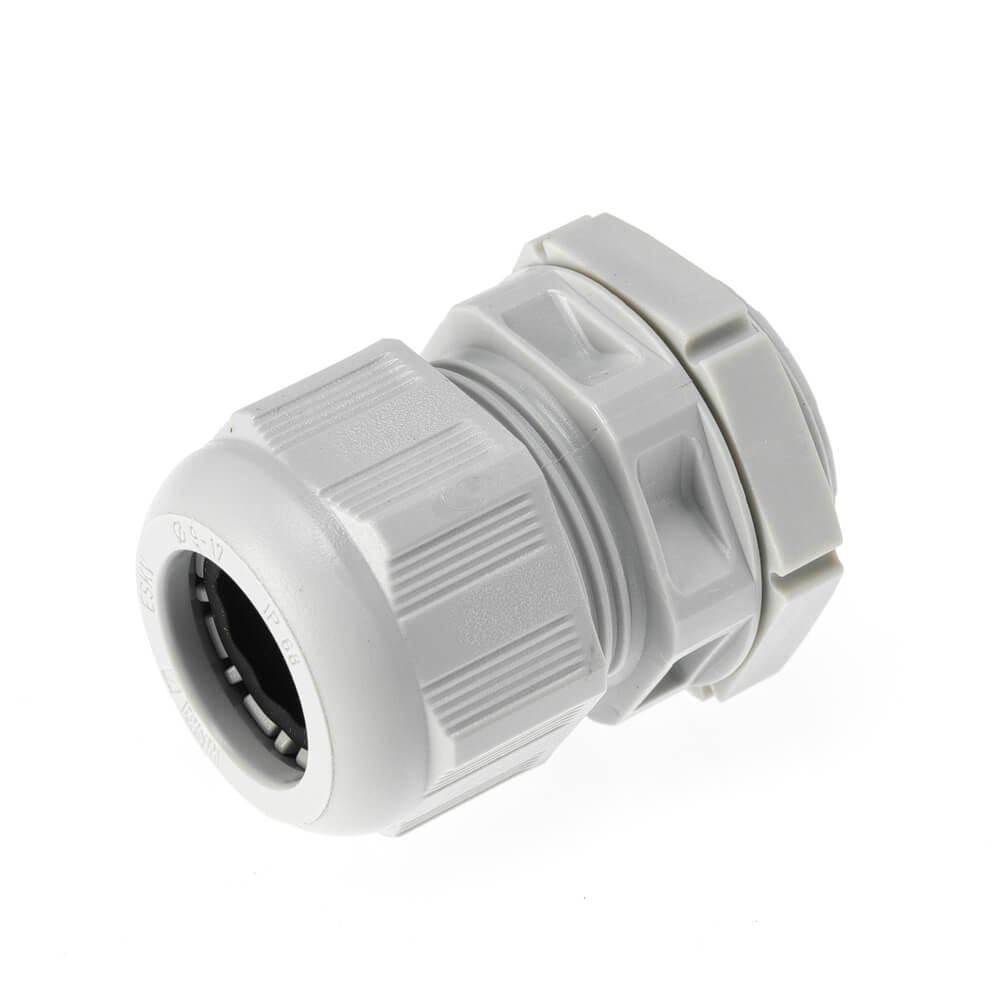

07-A6-325 - CG4 M25 Cable Gland:
Max Cable Size - 17mm
Min Cable Size - 9mm

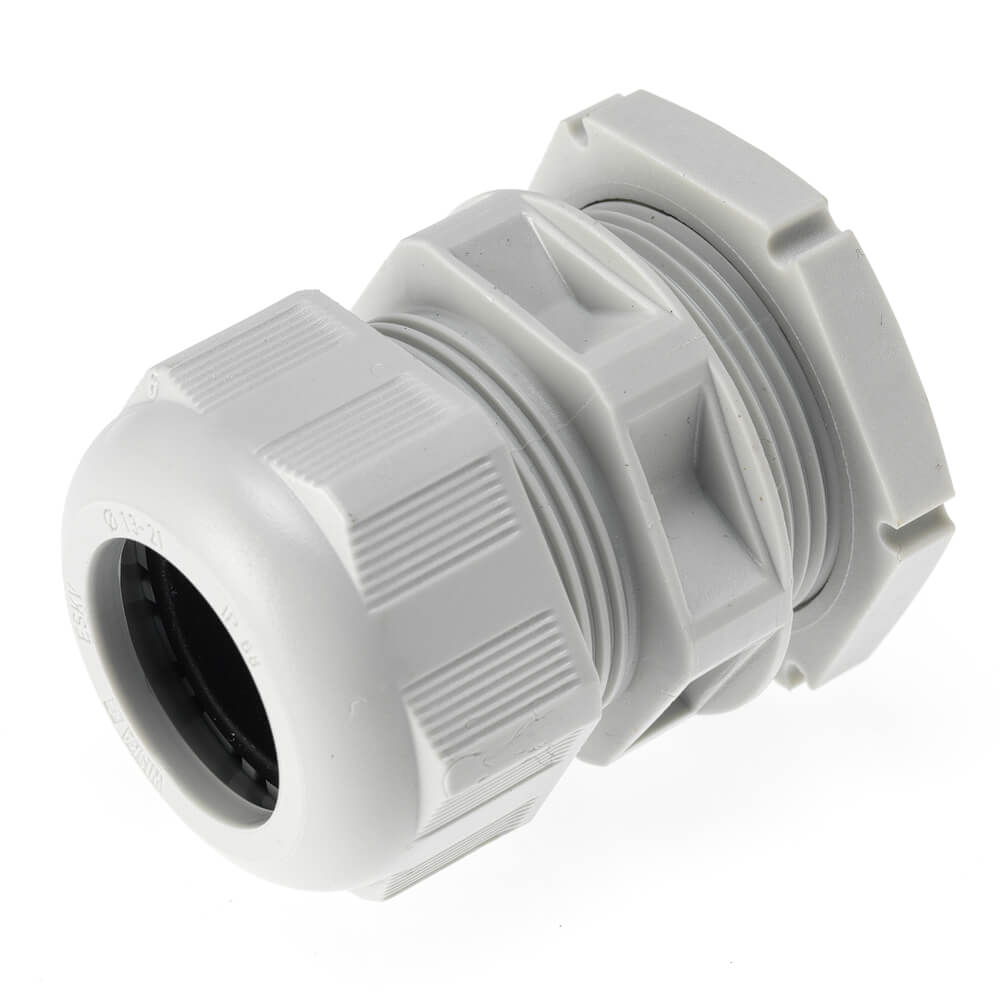

07-A6-332 - CG5 M32 Cable Gland:
Max Cable Size - 21mm
Min Cable Size - 13mm

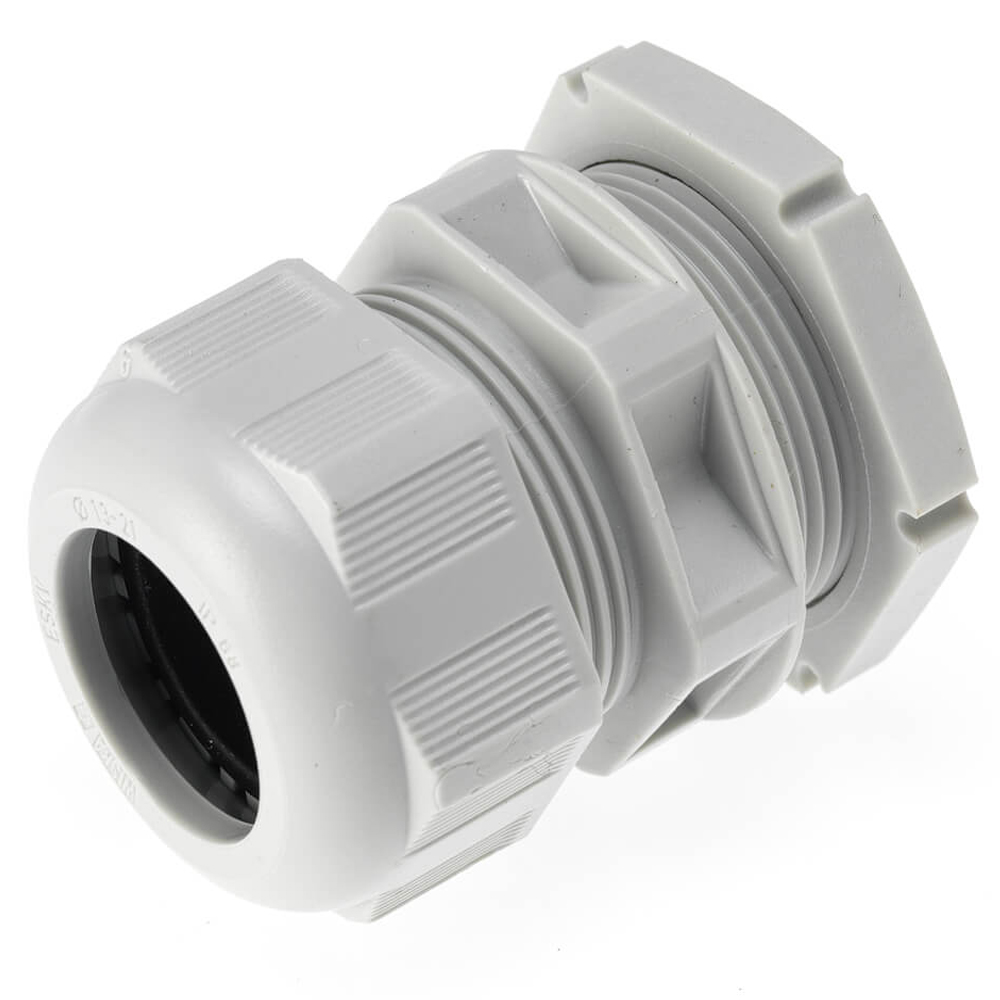

07-A6-226 - CG6 M40 Cable Gland:
Max Cable Size - 32mm
Min Cable Size - 22mm
Additional
| Options | CG1 M12 Cable Gland (3-7mm Cable Size), CG2 M20 Cable Gland (6-13mm Cable Size), CG4 M25 Cable Gland (9-17mm Cable Size), CG5 M32 Cable Gland (13-21mm Cable Size), CG6 M40 Cable Gland (22-32mm Cable Size) |
|---|---|
| Brand | Index |
