Removable / Folding Table Bracket Set (Pair)
This unit is designed to provide a solid support to a cockpit table but could also be used for a removable step. Permanent wall fixings stay in place but the brackets allow the easy removal of a table.
Description

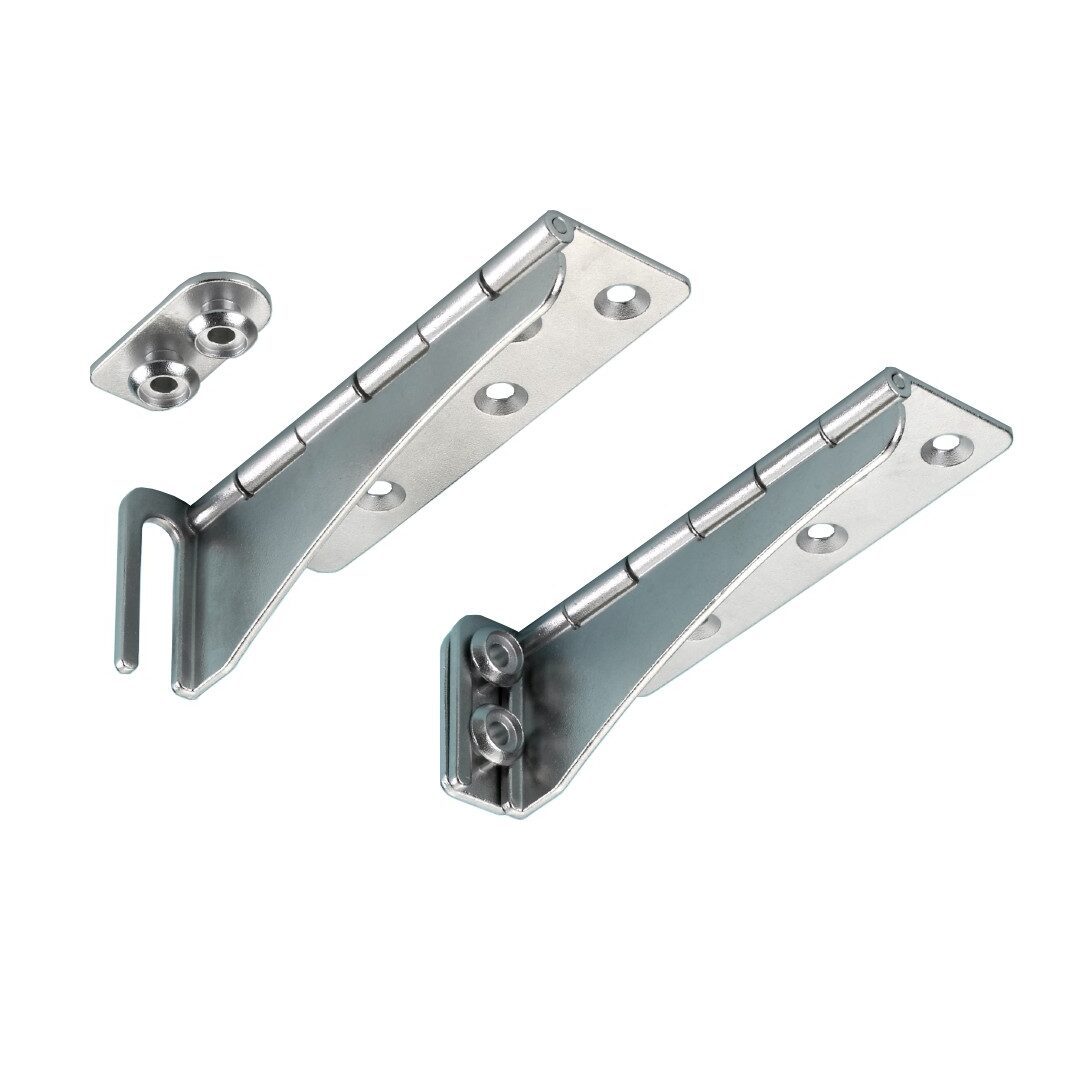

Cast 316 Stainless Steel Table Bracket. (Pair)
Brackets then fold down to only 29mm for easy locker storage on-board or for transportation.
Load tested to 600kgs at 145mm (step) and 180kgs at 450mm (table) so is ideal for a small to medium sized table. Load tested when attached to steel with suitable fixings. Please ensure brackets are attached to a suitable material deemed strong enough to accommodate loads applied.
For larger / longer tables we recommend using a folding table leg to support (see 10-14370) the table at the outer edge.
Bracket Dimensions;
Length OA - 153mm
Width Open - 69mm
Height Open - 58mm
Height Closed - 29mm
Wall Mount Dimensions;
Height - 54.5mm
Width - 25mm
Depth - 12.6mm
Additional
| Brand | 10/10A - C Quip |
|---|
